HPW-DUST High Pressure Dust Suppression System

Key Benefits

The system produces high-pressure water mist for effective dust control.

  • Targeted water mist straight to the dust source
  • Minimal water consumption
  • PM10 dust concentrations are 82% less with high-pressure dust suppression than without dust control while brushing (according to impartial research by Metropolia University of Applied Sciences)
  • The high-pressure dust suppression reduces 52% of PM10 dust concentrations compared to a low-pressure irrigation system while brushing (according to impartial research by Metropolia University of Applied Sciences)
  • The air remains cleaner after brushing when high-pressure dust suppression is used (according to impartial research by Metropolia University of Applied Sciences)
  • Easy to use
  • Prevents muddying
  • Doesn’t wet the worksite or street
  • Streets can be brushed without watering
  • Demolition site dust control without watering
  • Crushing without watering
  • Reduces health hazards at worksites
  • Improves working conditions
  • Saves time, space, labor costs and water
  • Easy to install on all hydraulic systems
  • Eco-friendly
  • Small carbon footprint
  • Two-year or 2000 hour warranty

Features

While small droplet size effectively binds dust emissions and even prevents the dangerous PM10 dust particles from spreading to the environment, there is even more great features.

  • Compact size
  • Light weight
  • Cabin operated
  • Optional Double Dust boosting system
  • The system Includes a robust, self-priming HPW High Pressure Water Pump
  • The pump has linear output adjustability from 0% to 100% by controlling hydraulic flow
  • Dust suppression nozzles can be installed on an attachment
  • The world’s best power-to-size ratio
  • The world’s best power-to-weight ratio
  • A washing gun for pressure washing

Applications

  • Prevent dust emissions in street cleaning
  • Prevent dust emissions in demolition
  • Prevent dust emissions in recycling
  • Prevent dust emissions in quarrying
  • Prevent dust emissions in mining
  • Prevent dust emissions in crushing
  • Prevent dust emissions in material handling

How Does the High Pressure Dust Suppression System Work?

The hydraulic high pressure dust suppression system utilizes a machine’s, vehicle’s or vessel’s hydraulic system as power source to generate high pressure water mist for dust suppression

  1. Hydraulic oil flow is led to the hydraulic high pressure water pump through the pressure line
  2. The hydraulic high pressure water pump converts the hydraulic oil flow and pressure into high pressure water
  3. The hydraulic oil is led back to carrier machine’s hydraulic oil tank through the return line
  4. The water is pumped to the high-pressure nozzles with the correct water pressure level which forms atomized water mist
  5. Atomized water mist consists of tiny water droplets which suppress the dust efficiently

Suitable machinery

Excavators

Material Handlers and Demolition Machinery

Crushers & Screeners

Loaders

Compact Loaders

Tractors & Agricultural Machinery

Street Sweepers and Cleaning Machinery

Trucks, Concrete Trucks & Mobile Cranes

Used in industries

Construction and Earthmoving

Drilling, Mining and Quarrying

Demolition and Recycling

Environment and Infrastructure

Property Management

Technical details

HPW-DUST HIGH PRESSURE DUST SUPPRESSION SYSTEMS
OUTPUT CHARACTERISTICSHPW250 Dust For Crusher - One ConveyorHPW220 Dust For Crusher - Two ConveyorsHPW220 Dust For Crusher - Three ConveyorsHPW250 Dust for ExcavatorHPW250 Dust for Excavator - Double DustHPW220 Dust for Excavator - Double DustHPW90 Dust for ExcavatorHPW90 Dust for Excavator - Double DustHPW160 Dust for Sweeper
Output flow max.l / min (U.S. gpm)30 (7.9)50 (13.2)50 (13.2)30 (7.9)30 (7.9)50 (13.2)150 (39.6)150 (39.6)18 (4.8)
Pressure recommendedbar (psi)140 (2000)140 (2000)140 (2000)140 (2000)140 (2000)140 (2000)
Pressure max.bar (psi)250 (3600)220 (3200)220 (3200)250 (3600)220 (3200)220 (3200)90 (1300)90 (1300)160 (2320)
Nozzles (Basic)pcs456422429
High power nozzlespcs----22-2-
HYDRAULIC POWER REQUIREMENTS
Flow max.l / min (U.S. gpm)40 (10.6)70 (18.5)70 (18.5)40 (10.6)40 (10.6)70 (18.5)85 (22.5)85 (22.5)18 (4.8)
Pressure recommendedbar (psi)160 (2300)140 (2000)140 (2000)160 (2300)160 (2300)140 (2000)
Pressure max.bar (psi)210 (3000)210 (3000)210 (3000)210 (3000)210 (3000)210 (3000)210 (3000)210 (3000)210 (3000)
Equipment
Pump typeHPW 250HPW 220HPW 220HPW 250HPW 250HPW 220HPW90HPW90HPW160

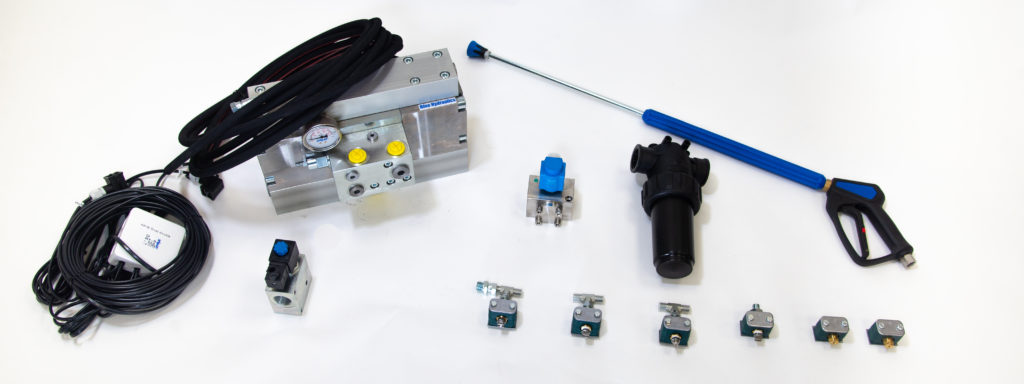

Installation kitAll kits include installation valves, fittings, connectors, nozzles, filters, washing pistol and 20m hose and reel
